PDQ09220011, Reverse Osmosis System - Mopar Essential Tools and Service Equipment

Item Detail

Table of Content

Reverse Osmosis System

Item Number: PDQ09220011

Supplied by PDQ MANUFACTURING INC (see all) Complete Item List

	ITEM IS DISCONTINUED 1-855-298-2687

Description

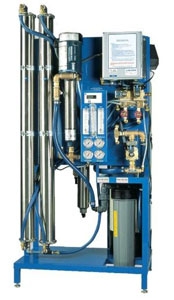

The PurClean Pro Series Reverse Osmosis System is a complete, electronically controlled, skid-mounted unit that incorporates all of the water pretreatment operations necessary to ensure high quality water is produced. The low pressure, high-efficiency design provides an industry leading pure water generation percentage of 70%. With no operational adjustments due to the unique auto-adjusting fluid system, the units are hassle free. The unit simply plugs into a standard dedicated 115 VAC, 20 amp outlet.

Features

Water stabilizer (replaces softener)
Inlet & pressure pump
Carbon tank with auto back flushing head
Multi-stage pressure pump
Low pressure shut off
Automatic membrane flush
Production & reject meters
On-board TDS meter
Aluminum frame
Pressurization and / or Reject recapture pump
Thin film membrane
Hinged control box - Quick and easy internal access
ETL listed
300 Tank with fill valve and float switch

Warranty

One (1) year

Product Specification

Water Requirements	Water line w/ FPT ball valves, 20 GPM at 30 PSI. Mount 4 feet up from floor to the right of the spot free rinse system and drain
Electrical Requirements (1Ph)	220V 20amp single phase circuit with its own L6-20 locking receptacle. Put plug 5 feet up from the floor to the right of the spot free rinse system.
Electrical Requirements (3Ph)	208/230 or 460/480 20 amp circuit, put circuit 5 feet up from the floor to the right of the spot-free rinse system.
RO Output	Production - 2.1 GPM
Reject	2.3 GPM
RO Motor	1.5 HP booster pump
Dimensions	30" Wide x 44" Tall x 12" Deep
Net Weight	500 lbs.
Delivery Pump	Standard delivery pump 15 GPM max at 50 PSI max. Automatic freshwater bypass pressure and GPM varies depending on which car wash application.
