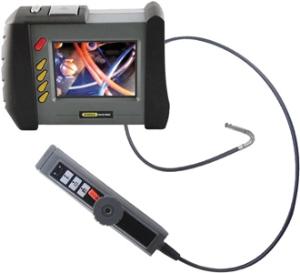

Wireless Borescope with Articulating Probe
Item Number: WTTDCS18HPAR

Supplied by WRIGHT TOOL COMPANY(MI) (see all)
ITEM IS DISCONTINUED

1-855-298-2687






Description

DCS18HPART Wireless Recording Video Borescope System with VGA Resolution Articulating Probe.

Features

  • Combines the console of  a DCS1800 Wireless Recording Video Borescope System with a 1m (3.3') long P18HPART Wireless VGA Resolution Articulating Probe.
  • P18HPART Wireless VGA Resolution Wireless Articulating Probe - with a diameter of 6 mm (0.23"), is IP67 waterproof, with an articulation range of +/- 155° and a VGA resolution (640 x 480 pixel) camera lit by five adjustable-brightness white LED's. Three buttons on the probe's controller allow you to brighten, rotate, and remove reflections from video and images to improve their clarity and readability.
  • Detaching probe to "go wireless" from up to 10m (33') away maximizes system flexibility by enabling two -handed inspections.
  • Ability to change the probe's viewing axis in situ by up to 155° in two directions - even close quarters- makes it possible to see around corners or even "Behind" the probe.
  • 3.5" diagonal color LCD on console for viewing probe video instantly and saved video clops and pictures later.
  • Familiar menu-driven user interface for viewing videos and photos on console's LCD (or TV) and saving media files to standard SD memory card (4GB card included).
  • 14 available menu languages

Includes

  • DCS1800 Console with 3.5" Color LCD
  • P18HPART VGA Resolution Wireless Articulating Probe
  • 110° Mirrored Viewing Tip
  • 4 GB SD Memory Card
  • AC Adapter / Battery Charger
  • A/V Cable
  • Custom Hard Plastic Carrying Case
  • User's Manual

Warranty

1 Year Limited




Product Specification

DCS1800 Console
Display Type, SizeColor TFT LCD, 3.5" (89mm) diagonal
Display & Video Recording Resolution320 x 240 pixels (QVGA)
Photo Recordomg Resolution640 x 480 pixels (VGA)
Analog Video Out FormatsNTSC, PAL
Wireless Frequency/Range2.4 GHz / 33' (10m)
Recording MediumStandard-size SD card
Dimensions8.5" x 4.7" x 1.4" (215mm x 120mm x 36mm)
Weight13.4 oz. (380g)
P18HPART Probe
Size, Type1m (3.28') Long x 60mm (0.23") Diameter, soft metal
Water/Oil/Dust ResistancePer IP67 standard
Depth of Field/Field of View0.25"" to 12" (6.4mm to 300mm) / 60°
Camera Lighting3 Forward-facing LEDs + 2 side-facing LEDs
Articulation Angle+/- 155°
Power SourceRechargeable 3.7V Li-ion battery
