Item Detail

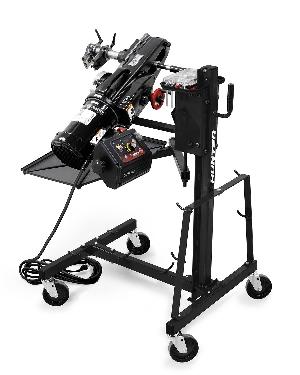

QuickComp™ On-Car Lathe Black
Item Number: HUNQCLHBLK

Supplied by HUNTER ENGINEERING COMPANY (see all)
ITEM IS DISCONTINUED

1-855-298-2687






Description

QuickComp Lathe with ServoDrive includes reverse function, Quick-Comp adaptor, Speed Wrench, Computer Compensation, Basic Accessories and a 25' power cable.

Features

  • Smoother Operation
  • Integrated adaptor storage
  • Stable four wheel design with articulating chip tray
  • Pro-Comp Compensation: Simple runout compensation - quick set-up!
  • Pivoting Control Module: Operates upright on either side of vehicle - easily accessible adjustments
  • Anti-chatter Technology: Oscillates machining speed to prevent buildup of vibration (chatter), providing a smoother surface finish - eliminates the use of chatter bands
  • Reverse Rotation: Assists servicing vehicles with excess driveline drag.
  • Powerful Motor and Drive - 1.5 hp motor provides unmatched speed and torque.
  • Variable-Speed Drive System: Change speed during machining - resurface rotors at fastest possible speed - service rotors on rear locking differentials without disconnecting the driveline.
  • Precise Machining: Unique, staggered cutting pattern prevents radial "push-out" effect of typical spiral pattern - finished surface meets or exceeds OEM specifications.

Includes

  • Compensation Adaptor
  • Speed Wrench
  • Standard Accessories

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.




Product Specification

Dimensions27"W x 47"H x 34"D (686 x 1194 x 864 mm)
Power Requirements115V, 15Amps, 60Hz, 1ph NEMA 5-15P (230V, 50-60Hz optional)
Rotor Max Diameter15.75 in. (400 mm) / 16.25 in. (413 mm)
Rotor Max Width2.75 in. (70 mm) / 3.25 in. (83 mm)
Feed Distance4.3 in. (109 mm)
Spindle SpeedAdjustable and auto variable (ACT), 0-120 rpm reversible
Motor1.5 hp (1.12 kw) @ 3450 rpm
Spindle Height, High Range (R)24.5"-40.5" (622-1029 mm)
Spindle Height, Low Range (R)20.25"-36.25" (514-921 mm)
Shipping Weight208 lbs. (94 kg)
