Description

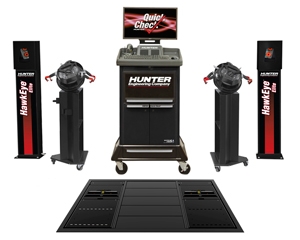

Hunter's Alignment Quick Check® System with Integrated Tread Check System.

NOTE: The Alignment Quick Check System MUST be installed in a bay or portion of the shop without a lift rack. The system is NOT designed to be used in conjunction with a lift rack. For additional site requirements, contact a program representative.

Quick Check Features

• Provides results in 58 seconds
• (4) High-resolution digital cameras measure angles with pinpoint accuracy.
• Exclusive QuickComp™ compensates all four wheels and captures measurements in one forward roll.
• Color printouts display front and rear total toe, camber on all wheels, and potential pre-mature tire wear.
• Standard VIN bar code scanner instantly enters a vehicle into the system to recall specifications.
• Set up in seconds with QuickGrip adaptors and three-dimensional targets:
  • Adjusts easily to various wheel sizes
  • Simple, one-touch lock lever - no knob twisting
  • Safely grips tire tread - no metal-on-metal contact
  • No electronics at the wheel
  • Lightweight, compact design
  • Shop-touch polymer construction

Quick Tread Features

• Easy-to-understand customizable printouts help sell tires
• Built-in accuracy eliminates human error and guesswork
• Point Cloud measurement technology- measure a full width by two inch segment
• 280,000 data points
• Generate three-dimensional models of the customer's tire
• Powder-coated stainless steel construction to resist corrosion
• Self-cleaning air knife
• Mechanical shutter protects sensors
• Completely sealed sensor housing protects electronic components

Includes

• Compact Cabinet and Widescreen LCD
• Keyboard and Mouse
• Wireless Remote
• Color Printer
• (4) High-Resolution Cameras
• (4) Three-Dimensional Targets
• (2) Sets of 8 Quick-Change Arms
• VIN Bar Code Reader Kit  (not available to Export market)
• (4) QuickGrip Wheel Adaptors
• (1) Set of 4 Protective Rings for QuickGrip Wheel Adaptors
• (2) Roll Around Storage Carts
• Quick Tread® Flush-Mounted Sensors

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
